Andromeda Workshop has been established in the year 2006 and has primarily cemented itself in the fire rated steel doors and windows fabrication sector ever since with the leaders of the industry nationwide.
Tel : +974 4455 2848, +974 5556 5315
Mail : info@andromeda.qa
Address : Steet 3081 Building 164 Birkat Al Awamer Industrial Area Doha Qatar

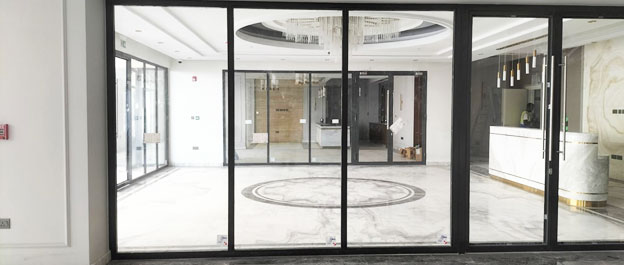

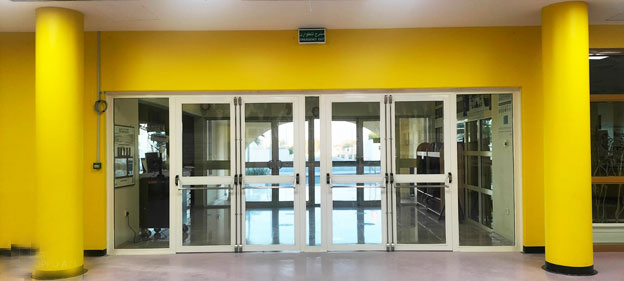

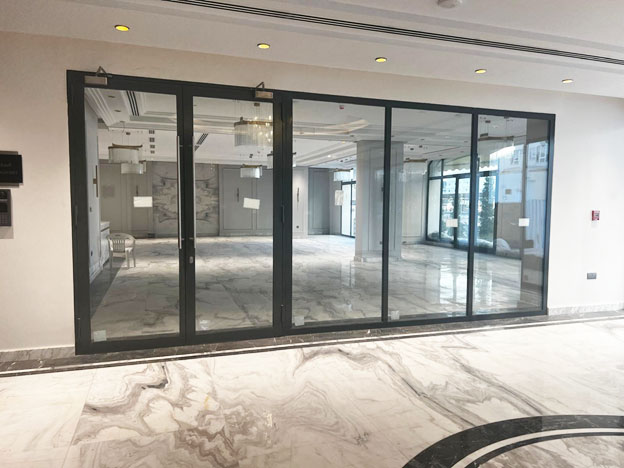

Andromeda presents the Forester System, combining sleek design with top-tier fire protection. Rated 30–110 minutes with 90-minute integrity compliance, it keeps your spaces safe without compromising style. Perfect for commercial and residential spaces, the Forester System lets natural light in while ensuring fire resistance and security—bringing safety, elegance, and brightness together.
1.5mm thick
1.2mm thick
GI/SS
150mm
45mm thick
Powder coated/ Wood Finish/SS Finish
FD30-FD180
14mm thick contraflam glass
Sashlock/Panic Latch etc.
3m x 3m

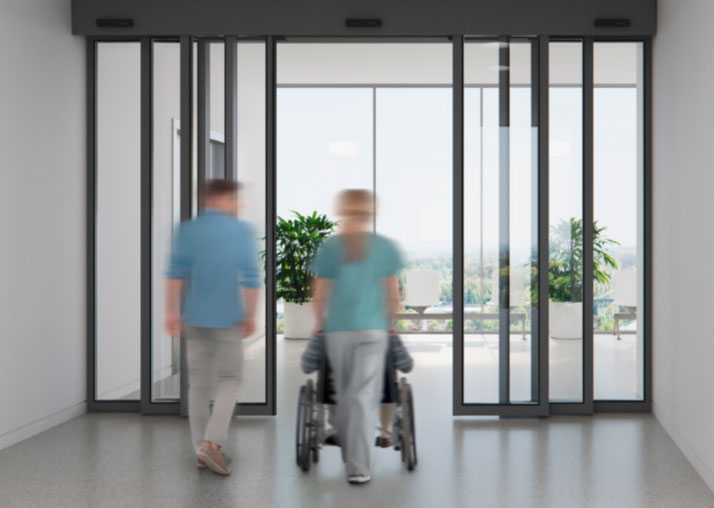

The forster fuego light fire-resistant sliding door has a space-saving design that combines maximum safety in fire protection with a barrier-free flow of traffic in highly frequented zones. In addition to the standard fire-resistant sliding doors, other tested applications and elements include sliding doors with integrated escape route function, sliding doors with sealing levels on four sides for smoke protection, plus the particularly space-saving telescopic fire-resistant sliding door. The system can then be used in a wide range of applications and allows for a high degree of design freedom. The narrow sightline, slender look and transparency of the system are all convincing arguments. The result is more light and a clearer view for maximum safety and security. A wide range of tested and approved fittings leaves nothing to be desired,whether in door automation or aesthetically with concealed hinges and door closers.
steel zinc magnesium. Brushed stanless steel
Door leaf from 50 mm, Central section from 135 mm
Inside width single-leaf (WxH): max. 2200 x 3000mm, inside width double-leaf (WxH): max. 2600 x 3000
Max. leaf weight accorchng to drive system marnufacturer
Design variants : Slidng door with singe/double leaf, with sidelight and fanlight, Structural depth from 65 mm, Max. filling element thickness 53.5 mm, Steel glazing beads, Wet and dry glazing
Fire procection E130 according to EN 1634-4, Smoke protection S2 or S200 according to EN 1634-3, Durability of self-closing properties Class 8 azordng to EN 12400 (tested up to to 1 million cycles according to EN 1191 with automatic door opener), Integrated doors for escape and emergency routes (partial and full panic system)according to EN 179 and EN 1125 Barrier-free according to DIN 18040, Finger trapping proctection according to DIN 18650 and EN 16005
* Take note of the country-specific approvals

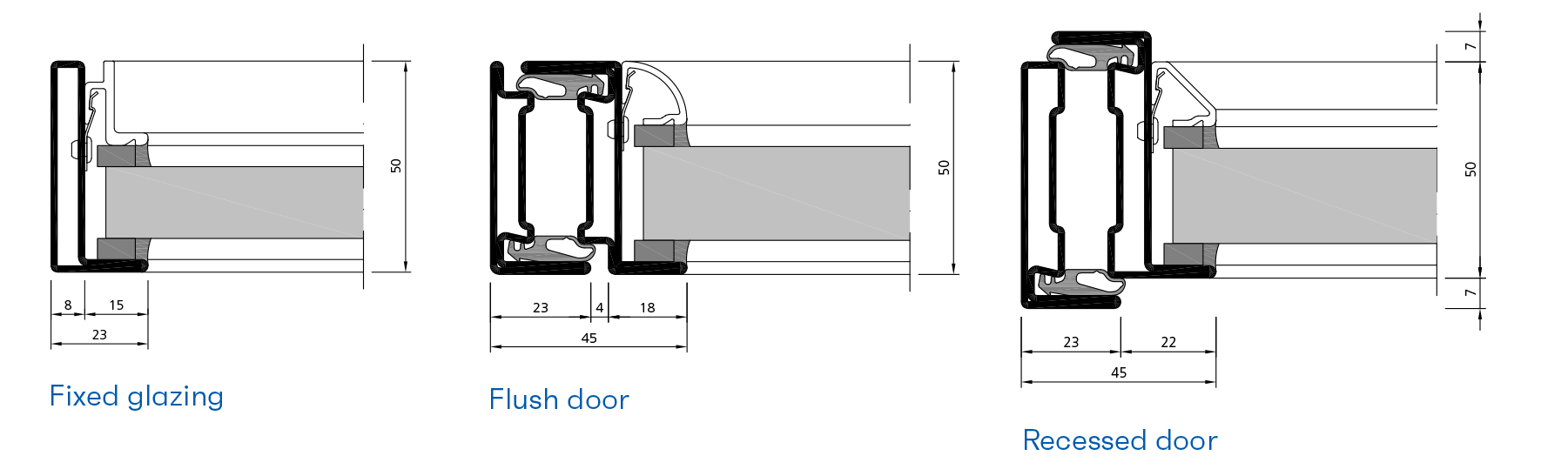

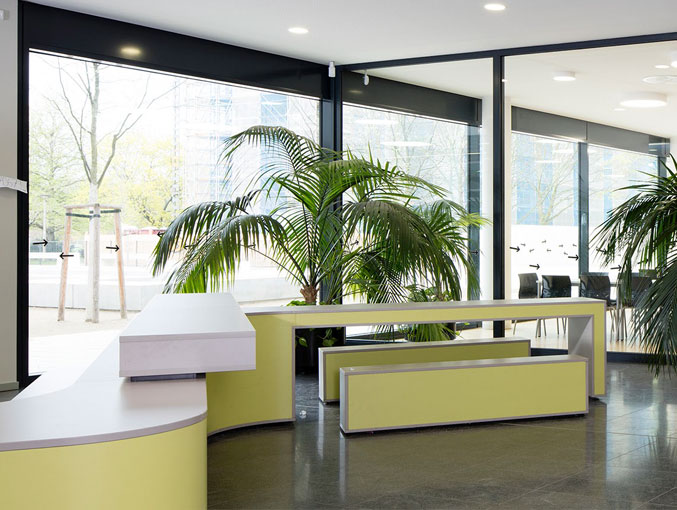

Forster fuego light is the reliable, multifunctional profile system for fire protection. The flush doors consist of a narrow steel frame with expansive glazing, which guarantees maximum transparency, a sleek appearance and reliable safety and security. In addition to fire-resistant doors and glazed fire screens, other tested applications include anti-finger-trap doors, flush sheet metal doors and butt-joint glazing. Possible combinations with burglary resistance and bullet resistance also meet the highest levels of safety.
The system can then be used in a wide range of applications and allows for a high degree of design freedom.
The narrow sightline, slender look and transparency of the system are all convincing arguments. The result is more light and a clearer view for added safety and security.
A wide range of tested and approved fittings leaves nothing to be desired, whether in door automation or aesthetically with concealed hinges and door closers.

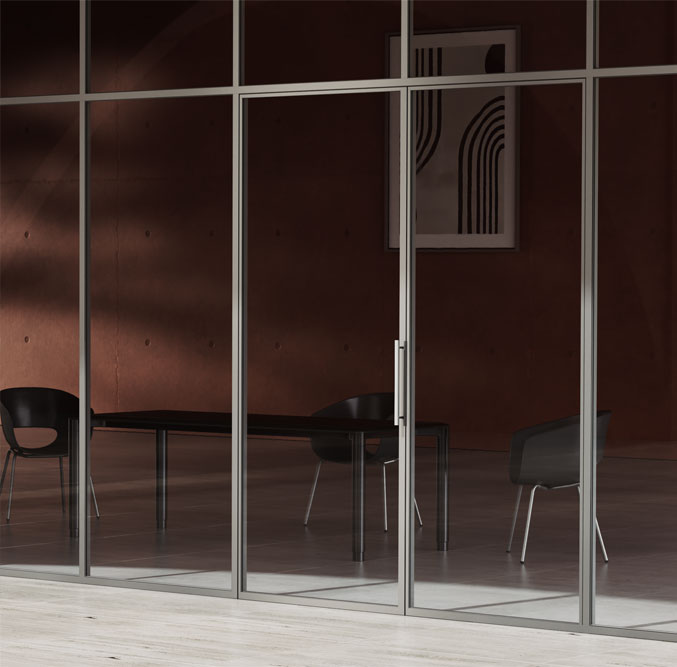

With their narrow face widths from 23 millimetres, the single-leaf or double-leaf doors in the forster presto xs system are sure to catch the eye in any room. Ductile profiles make this elegant steel system particularly versatile – whether for use in sophisticated residential construction or for renovations in line with requirements for listed buildings.
The recyclable system made from 100% steel also has a lot to offer in terms of functionality – it impresses with a low structural depth and sound insulation values of up to 35 dB. Barrier-free anti-panic doors in sizes of up to 1200 x 2400 millimetres can be implemented for escape and emergency routes. forster presto xs therefore represents the perfect blend of form and functionality.
