Andromeda Workshop has been established in the year 2006 and has primarily cemented itself in the fire rated steel doors and windows fabrication sector ever since with the leaders of the industry nationwide.
Tel : +974 4455 2848, +974 5556 5315
Mail : info@andromeda.qa
Address : Steet 3081 Building 164 Birkat Al Awamer Industrial Area Doha Qatar

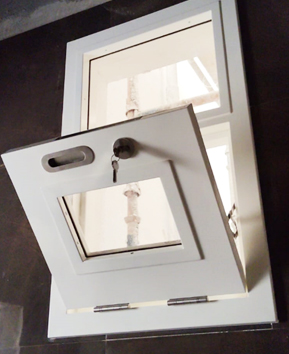

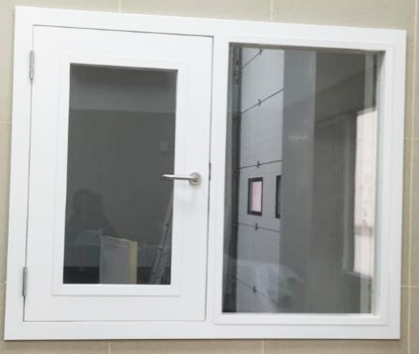

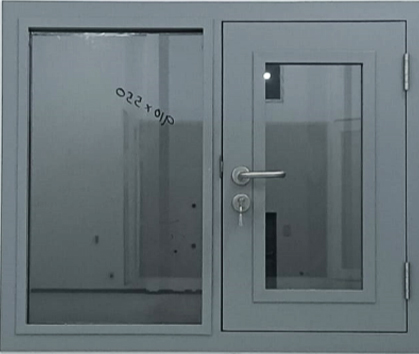

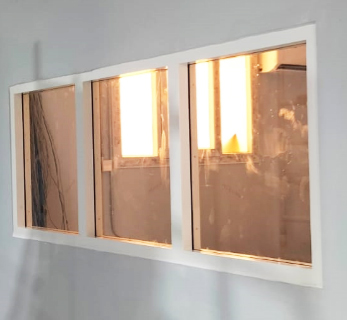

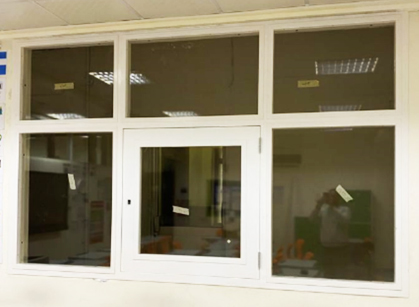

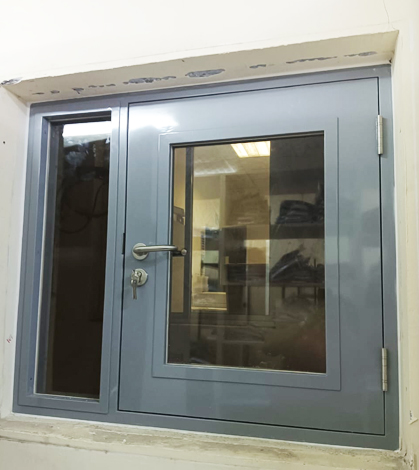

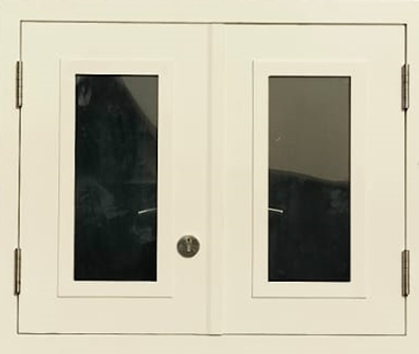

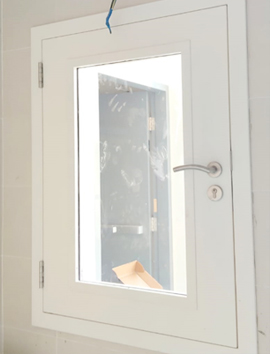

Andromeda offers certified BS listed Fire Rated FIXED AND OPENABLE WINDOWS for ultimate protection and peace of mind. As leading fire rated windows manufacturers in DOHA, QATAR, we prioritize safety and durability. Our expertise ensures compliance with international standards, providing reliable fire doors solutions for your premises. Our selection includes Honeycomb, Rockwool, Glazed, and Wooden Finish options, as well as Special Purpose Doors.
PYRAN® Platinum is the world’s first and only floated glass-ceramic developed specifically for the fire-rated glazing market. Architects appreciate the smooth surface, neutral color and proven technical performance. PYRAN® Platinum fire-rated glass-ceramics are certified by Underwriters Laboratories for fire-protection ratings up to 90 minutes and 180 minutes in doors. For safety-rated applications, filmed and laminated versions are available.

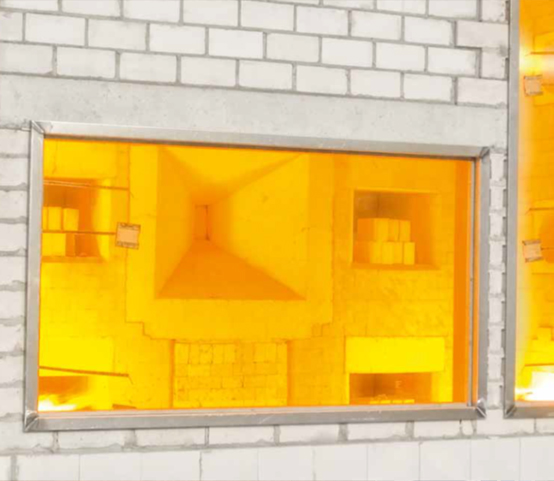

The Fire Endurance test for fire-protection rated glanzing subjects a full-size window or door assembly to a controlled time-temperature profile in a furnace. The test duration is 20 minutes up to three hours, depending on the desired rating, with temperatures reaching nearly 2000° F in three hours. The window assembly including frame, glazing and components must not allow flaming on the non-fire side, and the glazing must survive the test without breaking or cracking. PYRAN® Platinum is tested and certified by Underwriters Laboratories for fire protection up to 90 minutes in windows and 180 minutes in doors. All fire tests performed in accordance with UL9, UL10B, UL10C, UBC7-2 (1997), UBC7-4 (1997), NFPA257, NFPA80, ASTME2010-01, ASTME2074-00, ULCCAN4-S104 and ULCCAN4-S106.
Immediately following the Fire Endurance Test, the fireexposed side of the test assembly is subjected to impact from water blast in a prescribed pattern for duration appropriate to the specimen size. The glazing must remain intact in the frame. PYRAN® Platinum fire-rared glass-ceramic passes the hose-stream test thanks to its superior strength and near zero thermal expansion. All hose stream tests performed in accordance with UL9, UL10B, UL10C, UBC7-2 (1997), UBC7-4 (1997), NFPA257, NFPA80, ASTME2010-01, ASTME2074-00, ULCCAN4-S104 and ULCCAN4-S106
The acoustical performance of glazing is described by the Sound Transmission Class (STC) measured by ASTM E90. PYRAN® Platinum L effectively reduces unwanted sound transmission and has an STC rating of 36 (PYRAN® Platinum and PYRAN® Platinum F have an STC rating of 30).
In installations where accidental human impact could occur, fire-rated glazings must also withstand Impact Tests. Impact is tested using a 100-lb weight swung from a pendulum at 48-inch drop height. The glazing must remain intact with no significant openings. PYRAN® Platinum F with a surface applied safety film and PYRAN® Platinum L with an impact-resistant interlayer meet ANSI Z 97.1 and CPSC 16 CFR 1201 (Cat. I & II) impact tests.

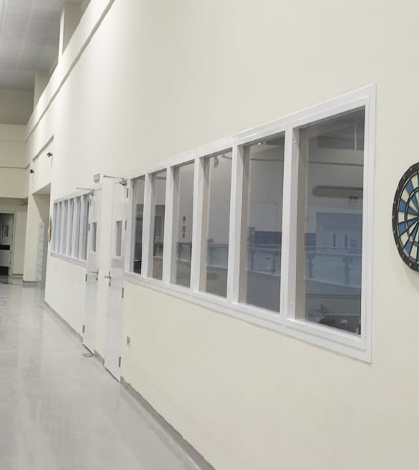

Andromeda 180 Minute Fire-Rated Single-Hung Windows are used in non-temperature rise applications and through various glazing options can be modified to address most fire-rated applications. Its narrow profiles providing open vision areas allows natural daylight without compromising life safety and design flexibility. The entire Fire-Rated line has been through rigorous testing. Initially, a “heat test” is performed where the window/door is exposed to temperatures up to 1600 degrees Fahrenheit. They will then endure the “Hose Stream Test”, wherein which the glass holds fast even during this extreme change in temperature. Where other units of different material will react poorly when placed under these extreme conditions, Optimum’s Fire-Rated Steel Window & Doors will hold and maintain its integrity.
1.5mm thick
150mm
GI/SS
5mm schoot payran platinum
1370*1370 mm
FD30-FD180
Welded
